Fully Automatic Ubbelohde Viscometer Temp 10 ～ 100℃ Measure 0.6 ～ 1000mm ²/S USP 911

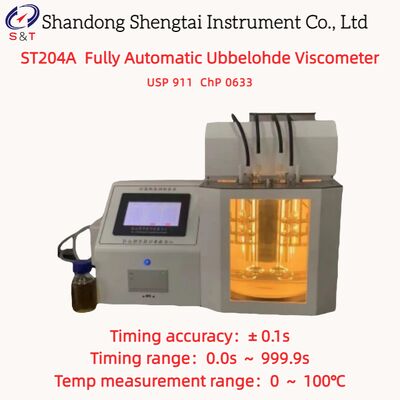

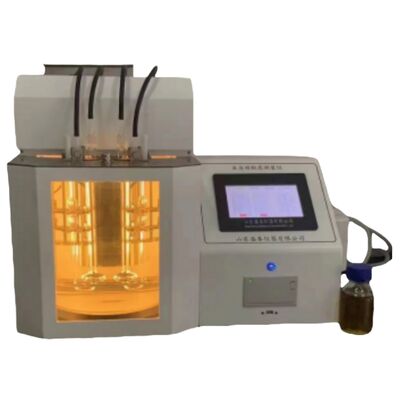

ST204A Fully Automatic Ubbelohde Viscometer

The ST204A fully automatic Ubbelohde kinematic viscometer is suitable for the second method of Ubbelohde capillary viscometer determination in General Rule 0633 of the Chinese Pharmacopoeia in 2025, as well as the USP<911>viscosity Ubbelohde capillary method design and manufacturing. This method uses the relative method to measure the time required for a certain volume of liquid to flow through a capillary under the action of gravity, in order to obtain the kinematic viscosity of the fluid.

The ST204 fully automatic Ubbelohde viscosity analyzer has a series of fully automatic functions such as automatic temperature control, automatic extraction, automatic timing, automatic calculation, automatic printing, automatic cleaning, and automatic drying in automatic mode. When in use, only one injection click is needed to start the experiment.

Technical performance parameters:

● Operation process: The entire process of sample temperature control, detection, calculation, viscosity tube cleaning, drying, and report printing is automated

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Remote upgrade: Equipped with TCP network transmission function, software can be remotely upgraded later

● Account Management: Hierarchical management of accounts, with the ability to set up a total account and sub accounts, including 3 levels of management permissions

● Account Extension: Audit Tracking Function (optional)

● Input extension: barcode scanner can be selected to scan and input sample information (optional)

● Data sharing: can be integrated into the LIMS system of the group company (optional)

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
