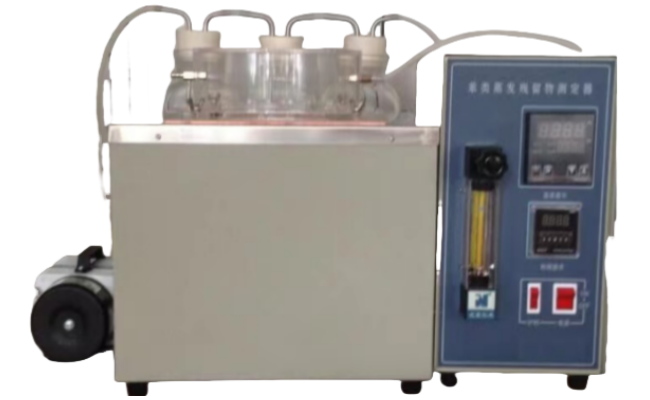

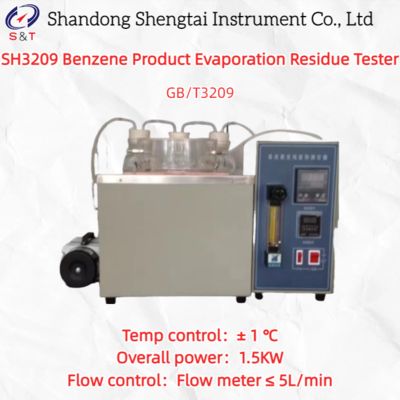

GB/T3209 Xylene Evaporation Residue Analyzer with PT100 Sensor

SH3209 Benzene Product Evaporation Residue Tester

The SH3209 Benzene Product Evaporation Residue Analyzer is designed and manufactured in accordance with the requirements specified in the People's Republic of China standard GB/T3209 "Determination of Evaporation Residue of Benzene Products". It is suitable for the determination of evaporation residue of coking benzene, coking toluene, coking xylene, petroleum benzene, petroleum toluene, and petroleum xylene.

• Working power supply: AC220V ± 10% 50Hz
• Heating method: electric heater heating
• Flat bottomed aluminum dish: outer diameter 80-100mm, 25-30mm, weight approximately 2g
• Temperature control range: Room temperature~150 ℃
• Temperature control: ± 1 ℃
• Temperature sensor: Industrial platinum resistance, with a division number of PT100
• Flow control: Flow meter ≤ 5L/min
• Sealed evaporator: composed of an evaporator hood and an evaporator chassis
• Overall power: 1.5KW

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

• The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity
• The materials and main components provided meet the technical requirements specified in the technical documentation
• The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts)
• We are responsible for free maintenance of any instrument quality issues that occur during the warranty period
• Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees
• Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine
• After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee

• Packaging of goods: standard wooden or cardboard boxes
• Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners
