Tutti i prodotti
  • Shandong Shengtai instrument co.,ltd
Numero di telefono : +8613220512573
whatsapp : +8613220512573

Automatic Sugar Cube Hardness Tester Measure 0 - 50MPa Save 199 Sets Of Date GB/T 35888

  • Automatic Sugar Cube Hardness Tester Measure 0 - 50MPa Save 199 Sets Of Date GB/T 35888
  • Automatic Sugar Cube Hardness Tester Measure 0 - 50MPa Save 199 Sets Of Date GB/T 35888
Luogo di origine Cina
Marca Shandong Shengtai Instrument Co.,Ltd
Certificazione QBT 1214 QB/T 5011 GB/T 35888
Numero di modello ST120F
Quantità di ordine minimo 1
Imballaggi particolari cassa di legno
Tempi di consegna 7 - 15 giorni lavorativi
Termini di pagamento T/T
Capacità di alimentazione 10000 set/anno
Dettagli
Campo di misura 0-50MPA Errore di indicazione ±1%
Diametro rotondo della pressapellicola 60 mm Risoluzione 0.1N
Corsa di lavoro 1~70 mm Variabilità dell'indicazione <1%
Evidenziare

Automatic sugar cube hardness tester

,

Sugar cube tester 0-50MPa

,

Food testing instrument with data storage
Lasciate un messaggio
Descrizione di prodotto

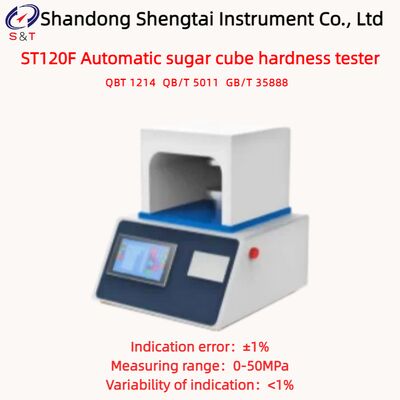

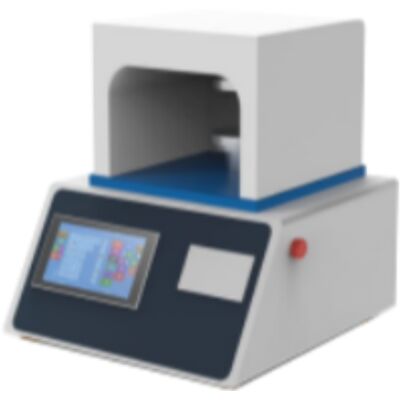

ST120F Automatic sugar cube hardness tester

ST120F Automatic sugar cube hardness tester is our company according to the standard QBT 1214-2002 sugar cube and QB/T 5011-2016 sugar cube test method GB/T 35888-2018 sugar cube regulation research and development using modern mechanical design concept and microcomputer processing technology for careful and reasonable design of a new type of high-precision intelligent tester, the use of advanced components, supporting components, single-chip microcomputer, reasonable structure and multi-functional design, configuration of liquid crystal Chinese display, It has various parameter testing, conversion, adjustment, display, memory, printing and other functions included in the standard.

Standard: QBT 1214 QB/T 5011 GB/T 35888

Product features

1. Modern design concept of mechatronics, compact structure, beautiful appearance, convenient maintenance;

2. The instrument adopts the upper pressure plate fixed type, high-precision load cell to ensure the rapidity and accuracy of the instrument force value data collection; High measurement accuracy.

3. Using high-speed ARM processor, high degree of automation, fast data collection, automatic measurement, intelligent judgment function, safe and reliable with powerful data processing function, can directly obtain the statistical results of various data, and can automatically reset, easy to operate, easy to adjust, stable performance.

4. It can display the curve of pressure and deformation, and display information such as pressure resistance and deformation in real time;

5. Modular integrated thermal printer, fast printing speed and convenient paper change;

Product parameters

Standard printing standard micro printer Automatic measurement Automatic thermal printing
Measuring range 0-50MPa
Storage mode experimental results can store 199 sets of historical data, easy to query;
Indication error ±1%
Variability of indication <1%
Resolution 0.1N
Working stroke 1 ~ 70mm
Round pressure plate diameter 60mm
Working environment

temperature (20 ± 10 )°C;

Relative humidity < 85%
Dimensions 530 * 350 * 580 mm (L*W*H)
Weight approx. 55kg
Result output: At the same time, it can be equipped with U disk output function, output to PC for long-term storage
Output format The output format of the resulting U disk is CSV or excel.
Data analysis function There are real-time display of compression curve function and data analysis management, saving, printing and other functions
Storage function It can store data on a microcomputer, and can be equipped with a U disk to output data
Display Man-machine interface Chinese and English menu; LCD display
Printout Modular integrated thermal printer

Automatic Sugar Cube Hardness Tester Measure 0 - 50MPa Save 199 Sets Of Date GB/T 35888 0

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Packing list

S/N name Quantity unit remarks
1 Host 1 Set
2 Power cord 1 Pieces
3 Fuse tube 1 Pieces Inside the seat10A
4 Instruction manual certificate 1 Copy
5 Warranty card 1 Copy



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
