Wheat Bran Star Tester Flour Processing Accuracy 10.5 Inch LCD Diaplay GB/T27628-2011

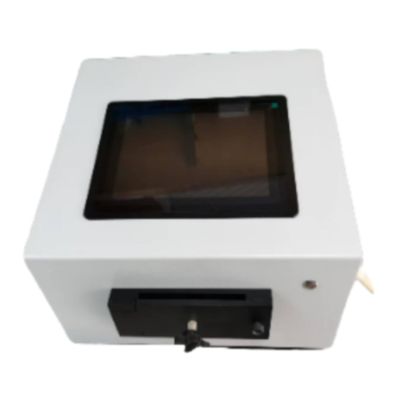

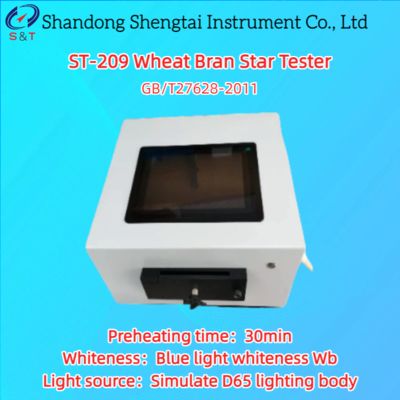

ST-209 Wheat Bran Star Tester

ST-209 Wheat Bran Star Tester is made in accordance with the requirements of GB/T27628-2011 Grain and Oil Inspection - Determination of Wheat Flour Pink and Bran Star. It uses a touch screen operation and can enlarge the display and measure the Bran Star content, black dot content, whiteness, and pink (L, a, b) values within 20 seconds. Based on the large Bran Star, it can determine whether the screen is leaking, save data and photos, facilitate querying, and completely change the situation of relying on the naked eye to adjust the process, Regular powder path testing can be conducted to determine whether the sieve is leaking and whether the process is reasonable through data comparison. This is the "wise eye" of powder technicians, allowing ordinary employees to have the same insight as powder technicians and ensuring the stability of the process.

Wheat flour processing accuracy tester - Flour processing accuracy tester - Bran star tester

Main performance characteristics:

● Fully automatic self check upon startup

● Automatically save multiple photos for comparative analysis; You can manually observe images for analysis.

● Determine the area ratio of colored impurities such as bran and black spots in flour; (Unit: parts per ten thousand)

● Measuring the pink color of flour can replace the whiteness meter;

● Measure the color L a and b values of flour;

● Predicting the ash content of flour;

● Determine if there is any leakage in the sieve;

● Can record other parameters of the sample, enriching sample query information; It can be recorded and queried based on production date, shift, and product name information;

Technical parameter:

● Determine the pink color, gluten content, and blue light whiteness of wheat flour

● Meet the industry standard sample determination requirements for wheat flour processing accuracy of the National Grain Administration

● Meet the requirements of GB/T 27628-2011 Grain and Oil Inspection - Determination of Wheat Flour Pink and Bran Star

● Color representation: Color space values L *, a *, b * (L, a, b)

● Input method: Both touch screen and USB keyboard can provide data.

● Gluten content represents the ratio of the surface area of the sample to the surface area of the sample (in parts per ten thousand)

● Whiteness representation: Blue light whiteness Wb;

● Display: 10.5 inch high-resolution LCD display

● Indicating error: whiteness ≤ 0.5, bran percentage ≤ 0.4%

● Repetitive test accuracy: The difference in excellent results between two measurements of the same sample is less than 10% of the average value, and the chromaticity value △ E * ab ≤ 0.2

● Preheating time: 30 minutes

● Image sensor resolution greater than 1 million pixels

● Can be connected to a printer

● Configure simulated bran star board and calibration whiteboard

● Can freely query data and generate Excel reports

● Can continuously scan, collect data from multiple points, analyze and display images in real-time on a computer, and save the images;

● Light source: Simulate D65 lighting body

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list:

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, comply with national quality standards, and have the manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The warranty period for the entire equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to the user's responsibility for causing equipment malfunction, we are responsible for maintenance and reasonable charges.

----Lifetime discounted supply of components for equipment, and lifelong maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
