Neutral Acid Washing Fiber Tester Van Soest Method 6 Samples Measure 90min ST116A

Luogo di origine Cina
Marca Shandong Shengtai Instrument Co.,Ltd
Numero di modello ST116A
Quantità di ordine minimo 1
Imballaggi particolari Cassa in legno
Tempi di consegna 7-15 giorni lavorativi
Termini di pagamento T/t
Capacità di alimentazione 10000 set/anno

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Oggetti di misurazione Vari mangimi, cereali, cereali, alimenti e altri prodotti agricoli e laterali che richiedono la misu Numero dei campioni 6 per prova
Tempo di misurazione Circa 90 minuti Misurare 540 × 450 × 670 mm
Energia 3.3KVA Alimentazione elettrica AC220V 50Hz
Evidenziare

neutral acid washing fiber tester

,

van soest method fiber analyzer

,

6 sample food testing instrument

Lasciate un messaggio
Descrizione di prodotto

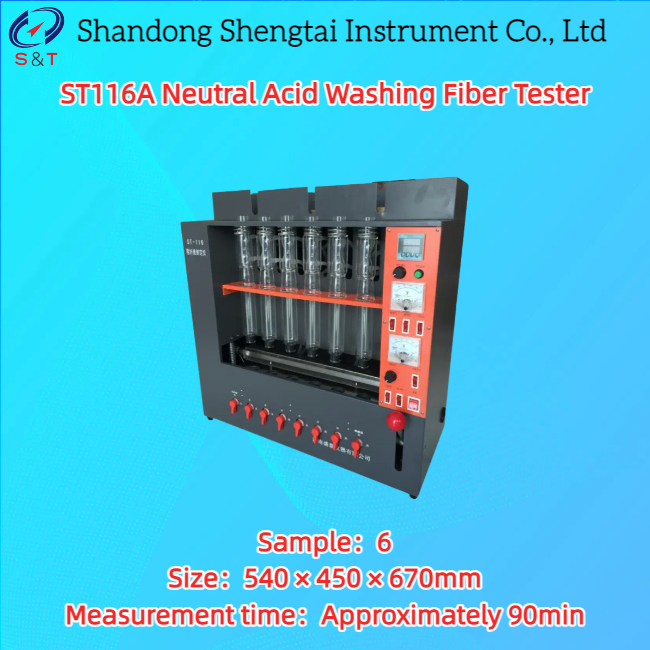

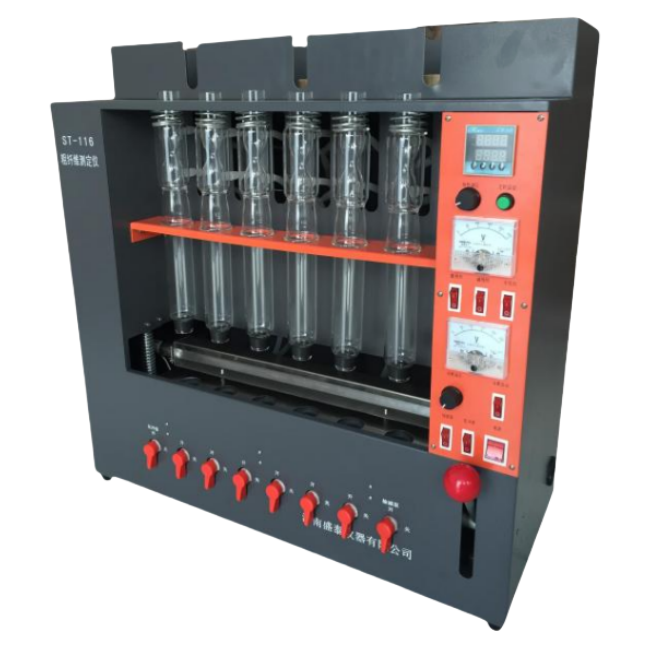

ST116A Neutral Acid Washing Fiber Tester

The ST116A neutral acidic fiber analyzer is an instrument that uses Van Soest's washing fiber analysis method to determine neutral washing fiber (NDF) and acidic washing fiber (ADF), and performs weight determination to obtain the neutral washing fiber and acidic washing fiber content of the sample. Using neutral detergent or acidic detergent, boil the sample under specific conditions, then repeatedly filter it in a specific crucible, rinse it twice with CH3COCH3, move the crucible into a drying oven at 100 degrees Celsius for 3 hours, and then weigh and calculate.

Technical indicators:

Measurement objects various feed, grain, cereal, food, and other agricultural and sideline products that require measurement of crude fiber, neutral fiber, and acidic fiber content
Number of test samples 6 per test



Repetitive error

Cellulose content below 10% absolute value error ≤ 0.4
Cellulose content above 10% relative error ≤ 4%;
Measurement time Approximately 90min
Power supply AC220V 50HZ
Power 3.3KVA
Size 540 × 450 × 670mm
Weight 28kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Neutral Acid Washing Fiber Tester Van Soest Method 6 Samples Measure 90min ST116A 0

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Product packing list

No. Name Quantity Unit Remark
1 Host 1 Unit
2 Fiber crucible 6 Piece
3 Glass flask 3 Piece
4 Power cord 1 Strip
5 Fuse tube 1 Piece 10A inside the insurance seat
6 Instruction manual 1 Copy
7 Certificate warranty card 1 Copy
