8 Channels Extreme Pressure Lubricating Oil Oxidation Stability Tester RT ～ 200℃ ASTM D2893

  • 8 Channels Extreme Pressure Lubricating Oil Oxidation Stability Tester RT ～ 200℃ ASTM D2893
  • 8 Channels Extreme Pressure Lubricating Oil Oxidation Stability Tester RT ～ 200℃ ASTM D2893
Luogo di origine Cina
Marca Shandong Shengtai Instruments Co., Ltd.
Certificazione SH/T 0123 ASTM D2893
Numero di modello SH0123B
Quantità di ordine minimo 1
Imballaggi particolari cassa di legno
Tempi di consegna 7 - 15 giorni lavorativi
Termini di pagamento T/T
Capacità di alimentazione 10000 set/anno
Dettagli
Metodo di controllo temp Regolatore di temperatura con display digitale per il controllo automatico della temperatura Intervallo di controllo della temperatura RT ~ 200 ℃
Precisione del controllo della temperatura ±0,2℃ della temperatura impostata Elemento di misura della temperatura Resistenza termica
Capacità del campione 8 canali, in grado di testare 8 campioni contemporaneamente Dimensioni dello strumento 480*360*800 mm
Evidenziare

8-channel lubricating oil oxidation tester

,

high-pressure oil stability tester ASTM D2893

,

RT to 200℃ oxidation stability apparatus
Lasciate un messaggio
Descrizione di prodotto

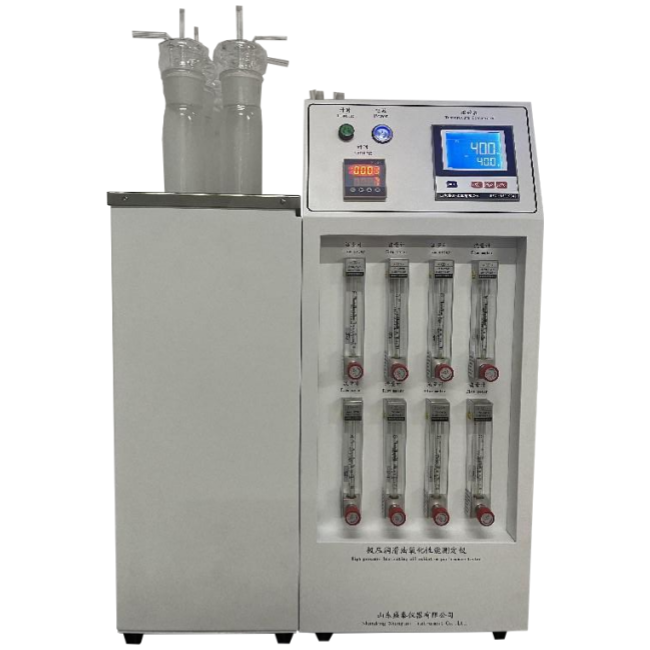

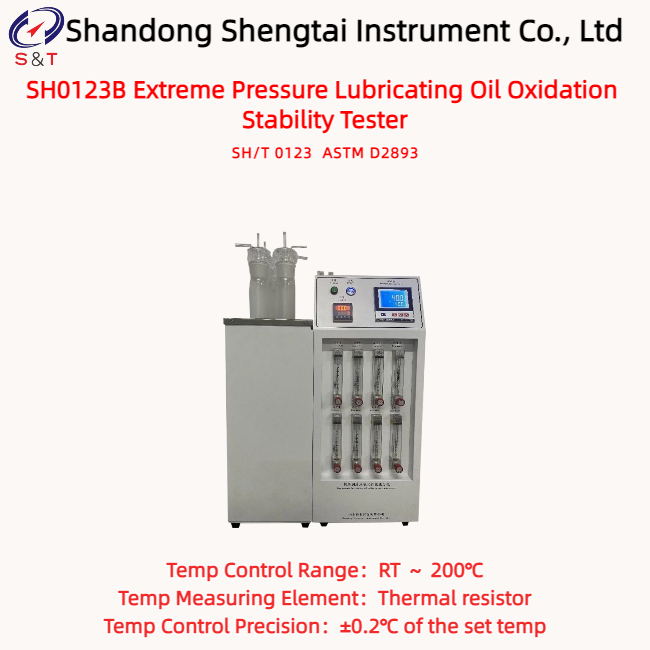

SH0123B Extreme Pressure Lubricating Oil Oxidation Stability Tester

Standard: SH/T 0123 ASTM D2893

SH0123B Extreme Pressure Lubricating Oil Oxidation Stability Tester is designed and manufactured in accordance with the requirements specified in the industry standard of the People's Republic of China, SH/T 0123 "Test Method for Oxidation Stability of Extreme Pressure Lubricating Oils". It is suitable for the determination of extreme pressure lubricating oils (such as gear oils). The operating method is as follows: the sample is exposed to constant-pressure dry air at a certain temperature for 312 hours. The oxidation stability of the oil is indicated by measuring the increase in kinematic viscosity at 100℃ and the change in sediment value of the sample.

Main Technical Features

● The instrument adopts a desktop structure, and the test tubes are designed and manufactured in accordance with the SH/T 0123 standard.

● The heating device uses a metal bath heating method with no peculiar smell.

● Equipped with 8 flow meters, whose specifications meet the requirements of the SH/T 0123 standard.

● Equipped with a digital timer for setting and recording the test time.

● Built-in air pump and purification device.

Main Technical Parameters and Indicators

Standards SH/T 0123 ASTM D2893
Temp Control Method Digital display temp controller for automatic temp control
Temp Control Range RT ～ 200℃
Flow Meter 30-300ml/min, one flow meter connected to each oxidation tube
Temp Control Precision ±0.2℃ of the set temp
Temp Measuring Element Thermal resistor
Sample Capacity 8 channels, capable of testing 8 samples simultaneously
Instrument size 480*360*800mm
Instrument weight 44.8kg
Package size 540*470*825mm
Package weight 69kg

8 Channels Extreme Pressure Lubricating Oil Oxidation Stability Tester RT ～ 200℃ ASTM D2893 0

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If the instrument is updated, there may be minor changes. No further notice will be given.



Package list

Number Name Quantity Unit Note
1 Host 1 Set
2 Oxidation Tube 8 Set
3 Hose (Inner Diameter φ6) 1 Piece
4 Glass Air Guide Tube 8 Piece
5 Instruction Manual 1 Copy
6 Certificate of Qualification 1 Copy



Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

8 Channels Extreme Pressure Lubricating Oil Oxidation Stability Tester RT ～ 200℃ ASTM D2893 1
