Transformer Oil Low Temp Closed Flash Point Tester 0 ～ +350℃ Compressor Refrigeration ASTM D93

  • Transformer Oil Low Temp Closed Flash Point Tester 0 ～ +350℃ Compressor Refrigeration ASTM D93
  • Transformer Oil Low Temp Closed Flash Point Tester 0 ～ +350℃ Compressor Refrigeration ASTM D93
Luogo di origine Cina
Marca Shandong Shengtai Instrument Co., Ltd
Certificazione GB/T 261 ISO 2719 GB 5085.4 ASTM D93
Numero di modello SH105C
Quantità di ordine minimo 1
Imballaggi particolari cassa di legno
Tempi di consegna 7 - 15 giorni lavorativi
Termini di pagamento T/T
Capacità di alimentazione 10000 set/anno
Dettagli
Gamma di rilevazione del punto di infiammabilità 0 ~ +350℃ Precisione del controllo della temperatura ± 0,1°C
Dispositivo di accensione Punto di accensione elettronico, non richiesta alcuna fonte di gas Metodo di refrigerazione Refrigerazione del compressore
Volume sperimentale 75 ¢ 80 ml Alimentazione elettrica AC220±10%V 50 Hz
Evidenziare

Transformer oil flash point tester

,

Low temp lube oil tester

,

ASTM D93 oil testing equipment
Lasciate un messaggio
Descrizione di prodotto

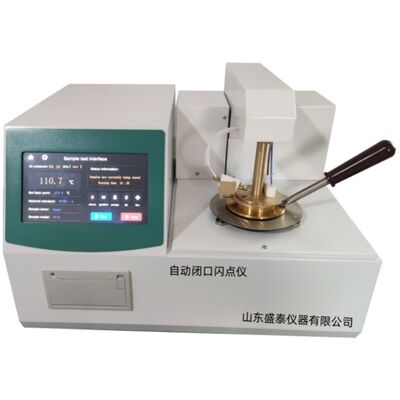

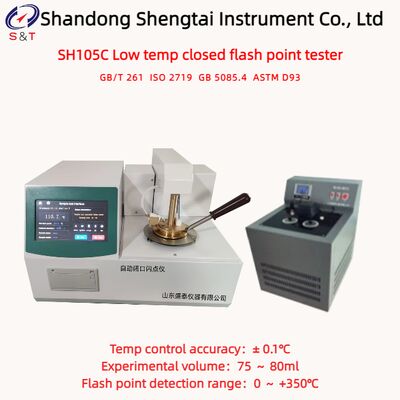

SH105C Low temp closed flash point tester

SH105C low temperature closed flash point tester is designed and manufactured in accordance with the requirements of the standard GB/T 261-2008 of the People's Republic of China.

Instrument according to the standard method of heating, automatic rise and fall, automatic ventilation, automatic ignition, automatic display, automatic locking flash point value, automatic printing results.

After the test can be automatically cooled, to achieve the full automation of the work process.It has the advantages of accurate measurement, good repeatability, stable performance and simple operation.Widely used in electric power, petroleum, chemical, commodity inspection, scientific research and other departments.

In line with ISO-2719, GB261 standard and GB 5085.4-2007 hazardous waste identification standard flammability identification.

Main technical indexes and parameters

Power supply AC220±10%V 50Hz
Flash point detection range 0 ～ +350℃
Measurement precision

The difference between two experimental results is less than 2 ℃ (for the same operator);

The difference between two experimental results is less than 3℃ (for different operators);
Temp control accuracy ± 0.1℃
Ignition device electronic ignition point, no gas source required
Refrigeration method compressor refrigeration
Power supply voltage AC220V ± 10% 50Hz
Whole power not exceeding 300W
Environmental temp 5℃ ～ 30℃
Relative humidity 30 ～ 80%
Experimental volume 75 ～ 80ml
Instrument size 430 * 380 * 520mm
Instrument weight 15kg
Circulating bath size 450 * 480 * 580mm
Circulating bath weight 28kg

Transformer Oil Low Temp Closed Flash Point Tester 0 ～ +350℃ Compressor Refrigeration ASTM D93 0

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packing list

S/N Name Quantity Unit Note
1 Automatic closed-mouth flash point meter 1 Set
2 Low temperature circulating bath 1 Set
3 Oil cup 1 Piece
4 AC power cord 1 Piece
5 Printing paper 1 Piece
6 Instruction manual 1 Piece
7 Packing list 1 Copy
8 Certificate warranty card 1 Copy

Transformer Oil Low Temp Closed Flash Point Tester 0 ～ +350℃ Compressor Refrigeration ASTM D93 1
