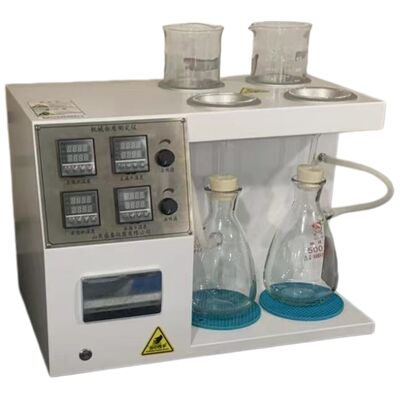

Gasoline Engine Oil Mechanical Impurity Analyzer RT ～ 100℃ Metal Bath Heating GB/T 511

  • Gasoline Engine Oil Mechanical Impurity Analyzer RT ～ 100℃ Metal Bath Heating GB/T 511
  • Gasoline Engine Oil Mechanical Impurity Analyzer RT ～ 100℃ Metal Bath Heating GB/T 511
Luogo di origine Cina
Marca Shandong Shengtai Instrument Co., Ltd
Certificazione GB/T 511
Numero di modello SH101
Quantità di ordine minimo 1
Imballaggi particolari cassa di legno
Tempi di consegna 7 - 15 giorni lavorativi
Termini di pagamento T/T
Capacità di alimentazione 10000 set/anno
Dettagli
Modalità riscaldamento Riscaldamento da bagno in metallo Intervallo di controllo della temperatura RT ~ 100 ℃
esposizione temporanea Display digitale a LED Visualizza precisione 0,1 ℃
Alimentatore funzionante CA 220 V ± 10% 50 Hz Intero potere Non più di 2,0 kW
Evidenziare

Gasoline engine oil impurity analyzer

,

Mechanical impurity tester metal bath

,

Lube oil testing equipment RT 100℃
Lasciate un messaggio
Descrizione di prodotto

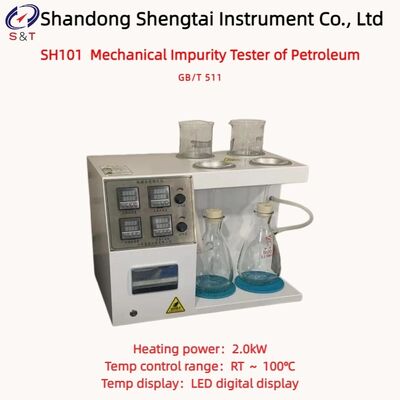

SH101 Mechanical Impurity Tester of Petroleum

The SH101 mechanical impurity analyzer is designed according to the requirements of the national standard GB/T 511 "Determination of Mechanical Impurities in Petroleum Products and Additives (Weight Method)", and is suitable for determining the content of mechanical impurities in various light and heavy oils, lubricants, and additives in petroleum products.

The water bath adopts glass bathtub, which can be loaded with 2 beakers, double control box, and can simultaneously carry out two high and low temperature filtration experiments

Method Summary

Weigh a certain amount of sample and dissolve it in the solvent used. Filter it through a constant weight filter paper or microporous glass filter. Impurities left on the filter paper or microporous glass filter are called mechanical impurities.



Petroleum Product Tester Mechanical Impurity Tester

Determination of Mechanical Impurities Tester for Petroleum Products and Additives Lab Mechanical Impurity Analyzer

Mechanical Impurity Tester of Petroleum Products and Additive by Weight Method

ASTM D4807 Mechanical Impurity Tester of Petroleum Products and Additive

ASTM D4807 Weight Method Mechanical Impurity Tester of Petroleum Products and Additive

Accuarate Petroleum Heavy Oil Lubricating Oil Mechanical Impurities Tester



Main technical parameters

Heating mode Metal bath heating
Heating power 2.0kW
Temp control range RT ～ 100℃
Temp display LED digital display
Display accuracy 0.1℃
Pump Equipped with an internal air pump, no external air source required
Working power supply AC220V±10% 50Hz
Whole power No more than 2.0KW
Environment temp ≤35℃
Relative humidity ≤85％
Instrument size 480*335*49mm
Instrument weight 15kg

Gasoline Engine Oil Mechanical Impurity Analyzer RT ～ 100℃ Metal Bath Heating GB/T 511 0

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Packing List

S/N Name Quantity Unit Remarks
1 Host 1 Set Built-in vacuum pump
2 Temperature sensor 1 Piece In the built-in instrument
3 Suction bottle (500ml, including 9# white plug) 2 Set
4 Glass funnel Ф (90) 2 Piece
5 Power cord 1 Piece
6 Operating instruction 1 Copy
7 Certificate of approval 1 Copy



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee

Gasoline Engine Oil Mechanical Impurity Analyzer RT ～ 100℃ Metal Bath Heating GB/T 511 1
