6 Work Units Coarse Fiber Tester Tests 990min Test Acid-Base Digestion GB/T 6434

  • 6 Work Units Coarse Fiber Tester Tests 990min Test Acid-Base Digestion GB/T 6434
  • 6 Work Units Coarse Fiber Tester Tests 990min Test Acid-Base Digestion GB/T 6434
Luogo di origine Cina
Marca Shandong Shengtai Instrument Co.,Ltd
Certificazione GB/T6434 GB/T5515
Numero di modello ST116
Quantità di ordine minimo 1
Imballaggi particolari cassa di legno
Tempi di consegna 7 - 15 giorni lavorativi
Termini di pagamento T/T
Capacità di alimentazione 10000 set/anno
Dettagli
Oggetto di misurazione contenuto di fibre grezze in vari tipi di cereali, mangimi, alimenti e altri prodotti agricoli e col Quantità di misurazione del campione 6/times
Errore di riproducibilità Livello di fibra grezza < 10%, errore in valore assoluto ≤ 0,4%, Livello di fibra grezza > 10% Tempo di misurazione circa 90 minuti
Energia AC220V 501HZ Dimensioni dello strumento 540*450*670 mm
Evidenziare

coarse fiber tester for feed

,

acid-base digestion fiber tester

,

GB/T 6434 fiber testing instrument
Lasciate un messaggio
Descrizione di prodotto

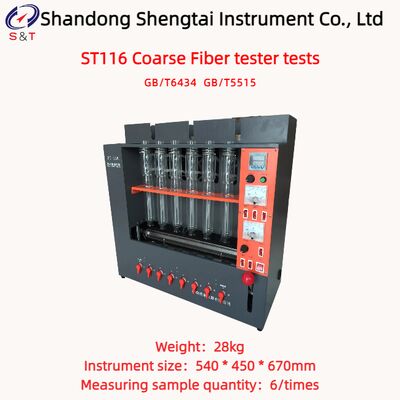

ST116 Coarse Fiber tester tests

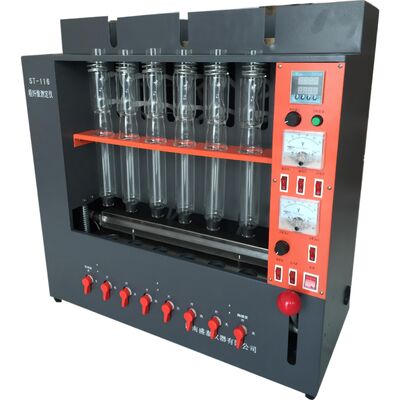

The ST116 crude fiber tester is an instrument that utilizes the commonly used acid-base digestion method to digest samples and conducts weight measurement to determine the crude fiber content of the test sample.

Using acids and alkalis with accurate concentrations, digest the sample under specific conditions, then remove soluble substances with ethanol, and after high-temperature ignition, deduct the amount of minerals. The remaining content is called crude fiber. It is not an exact chemical entity, but only an approximate composition measured under recognized mandatory conditions, mainly consisting of cellulose, with a small amount of hemicellulose and lignin.

It is suitable for determining the crude fiber content of various grains, feed, etc., and the test results comply with the provisions of national standards GB/T5515 and GB/T6434.

Standard: GB/T6434 GB/T5515

Hot Sale Crude Fiber Tester /Coarse Fiber Tester

Coarse Fiber Analyzer or Raw Fiber Tester

Raw Fiber Analyzer Lab Coarse Fiber Tester

Coarse Fiber Analyzer or Raw Fiber Analyzer

Technical parameter

Measuring object raw fiber content in various kinds of grain, feed, food and other agriculture and sideline products
Measuring sample quantity 6/times
Reproducibility error

Raw fiber level < 10%, absolute value erroe≤0.4%,

Raw fiber level >10%, absolute value error≤4%
Measuring time about 90min (including acid 30min, alkali 30min, filter and wash 30 min)
Power AC220V 501HZ
Instrument size 540 * 450 * 670mm
Weight 28kg
Package size 715 * 510 * 765mm
Package weight 40kg

6 Work Units Coarse Fiber Tester Tests 990min Test Acid-Base Digestion GB/T 6434 0

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Fiber crucible 6 piece
3 Glass Flask 3 piece
4 Power cord 1 piece
5 Fuse tube 1 piece 10A in the safety seat
6 instructions 1 copy
7 Certificate warranty card 1 copy



Quality assurance

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The instruments and materials provided are brand new, comply with national quality standards, and come with manufacturer's certification;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The warranty period for the entire equipment is one year (excluding normal wear and tear of consumable parts).

----We are responsible for free maintenance of any instrument quality issues that arise during the warranty period. If the equipment malfunctions due to the user's responsibility, we will repair it and charge a reasonable fee.

----We offer lifelong discounts on spare parts for the equipment, and provide lifelong maintenance and repair services for the entire machine.

----After the warranty period expires, if the user requires maintenance and technical services, we will only charge for the cost.

6 Work Units Coarse Fiber Tester Tests 990min Test Acid-Base Digestion GB/T 6434 1
