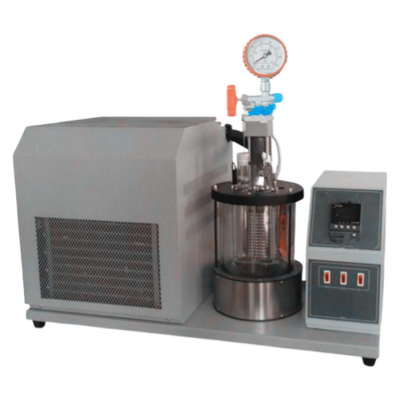

Freezing Oil And Refrigerant Inter Solubility Tester +30℃ ～ -70℃ Dewar Bottle SH/T 0699

  • Freezing Oil And Refrigerant Inter Solubility Tester +30℃ ～ -70℃ Dewar Bottle SH/T 0699
  • Freezing Oil And Refrigerant Inter Solubility Tester +30℃ ～ -70℃ Dewar Bottle SH/T 0699
Luogo di origine Cina
Marca Shandong Shengtai Instrument Co.,Ltd
Certificazione SH/T 0699
Numero di modello SH0699
Quantità di ordine minimo 1
Imballaggi particolari cassa di legno
Tempi di consegna 7 - 15 giorni di lavoro
Termini di pagamento T/T
Capacità di alimentazione 10000 set/anno

Contattimi gratis campioni e buoni.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
serbatoio a freddo funzionante Doppio bagno di vetro sottovuoto Controllo della temperatura del serbatoio freddo +30°C −70°C
Precisione del controllo della temperatura ±0,5℃ Contenitore di raffreddamento del bagno Bottiglia Dewar
Sistema di refrigerazione compressore di sovrapposizione importato di refrigerazione UMIDITÀ RELATIVA ≤85%
Evidenziare

Freezing oil solubility tester SH/T 0699

,

Refrigerant solubility tester with Dewar bottle

,

Lube oil testing equipment for low temperatures
Lasciate un messaggio
Descrizione di prodotto

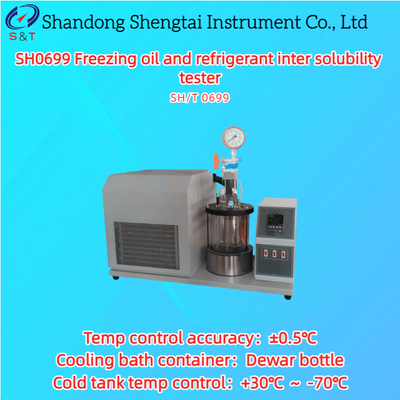

SH0699 Freezing oil and refrigerant inter solubility tester

SH0699 refrigerant oil and refrigerant solubility tester is designed and manufactured according to the national petrochemical industry standard SH/T0699 refrigerant oil and refrigerant solubility, refrigerant oil compatibility.

It is applicable to the compatibility, compatibility and inter solubility of refrigerating oil and refrigerant

Instrument features

Digital tube display temperature, the use of imported PT100 temperature sensor, equipped with a special glass thermometer;

Equipped with special pressure gauge, vacuum pump pumping, needle valve adjustment, vacuum pressure gauge display instrument is equipped with a safety valve, to ensure the safety of the sample two-phase separation curve, and ensure that the working pressure is 1.5Mpa. The pressure resistant hose is connected with the transparent tube to protect the cylinder, and it is convenient to observe the special refrigerant collecting pipeline.

Product model SH0699
Product Name Refrigeration oil and refrigerant solubility tester
Manufacturer Shandong Shengtai Instrument Co., Ltd
Testing items Used for compatibility between refrigeration oil and refrigerant, compatibility between refrigeration oil, and compatibility between refrigerant
Standards SH/T 0699
Simple technical features or parameters Nixie tube is used to display temperature, and imported PT100 temperature sensor is used

Freezing Oil And Refrigerant Inter Solubility Tester +30℃ ～ -70℃ Dewar Bottle SH/T 0699 0

Technical parameters

Working power supply AC220V±10% 50HZ
Working cold tank double vacuum glass bath
Cold tank temp control +30℃ ～ -70℃
Temp control accuracy ±0.5℃
Refrigeration system imported overlapping refrigeration compressor
Cooling bath container Dewar bottle
Relative humidity ≤85%
Whole power About 1500W
Instrument size 720*450*620mm
Instrument weight 72kg

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Packing list

S/N Name Unit Quantity Remarks
1 Engine coolant compatibility tester Set 1
2 Test tube and protective tube Set 1
3 Pressure hose Piece 1
4 Thermometer Piece 1
5 PT100 sensor Piece 1
6 Power cable(220V 6A) Piece 1
7 Instruction Copy 1
8 Packing list Copy 1
9 Certificate warranty card Copy 1

Freezing Oil And Refrigerant Inter Solubility Tester +30℃ ～ -70℃ Dewar Bottle SH/T 0699 1

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
