2 Holes Full-Automatic Ubbelohde Kinematic Viscometer RT ～ 100℃ 199 Sets Storage ASTM D445

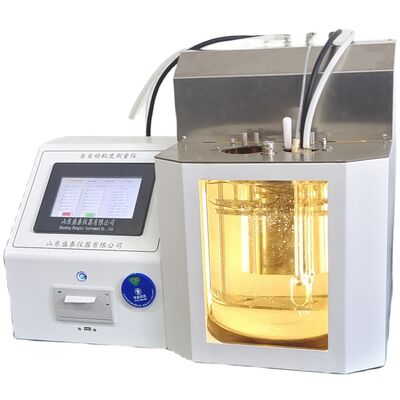

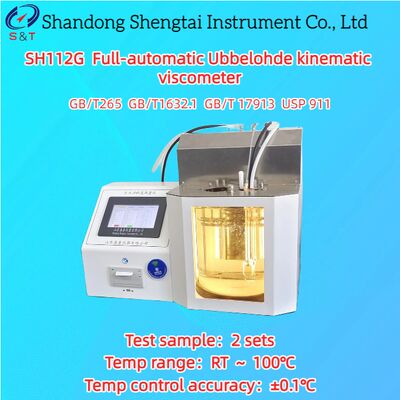

SH112G Full-automatic Ubbelohde kinematic viscometer

The SH112G fully automatic Ubbelohde viscosity tester is a testing equipment that complies with the requirements of GB/T265 and GB/T1632.1-2008, and can also meet the requirements of USP <911> viscosity Ubbelohde capillary method for the kinematic viscosity, viscosity number, and intrinsic viscosity of oil and polymer dilute solutions. It meets the requirements of Appendix A (Determination of PET resin viscosity in dilute solutions using capillary viscometer method) in GB17931-2003 for inspection.Widely used in pharmacopoeia, petroleum, chemical industry, scientific research, metrology and other departments. The instrument workflow includes full automation of constant temperature, detection, calculation, viscosity tube cleaning, drying, and printing report forms.

Kinematic viscosity:

At a constant temperature, the gravity flow under a certain volume model is determined, and the constant of the calibrated glass capillary viscometer flows over time. The product's kinematic temperature is used to measure the viscosity of the liquid

Instrument features

● Large size color touch screen display.

● Using a 32-bit microprocessor as the control core.

● The main components and electronic components of the instrument are all imported devices, which have good stability.

● The instrument has automatic timing function, automatic calculation, automatic printing, automatic cleaning, automatic drying, automatic USB flash drive output, and other functions.

● Temperature control is fast and stable, with a heating rate of >5 ℃/min.

● Equipped with LED soft light, with uniform light filling for easy observation.

● It has the function of storing viscometer parameters.

● Microprocessors can expand memory to 16G

● Storage method: The experimental results can be stored in 199 sets of historical data for easy query;

● Result output: It can also be equipped with a USB flash drive output function, which can be output to the PC for long-term storage

● Output Format: The output format of the result USB drive is CSV or Excel.

★ Remote upgrade: With TCP network transmission function, software remote upgrade can be carried out later (optional)

★ Data management: can be connected to the LIMIS system (optional)

Main technical indicators

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
