Automatic Low Temp Kinematic Viscometer -40℃ ～ 60℃ Measure 0.4-30000mm²/S ASTM D445

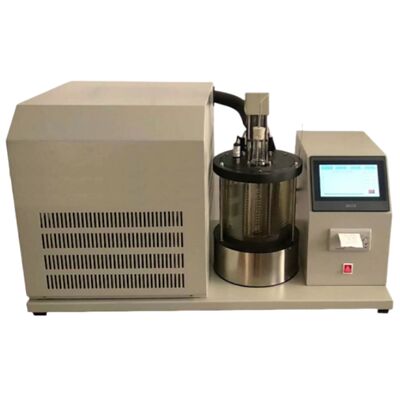

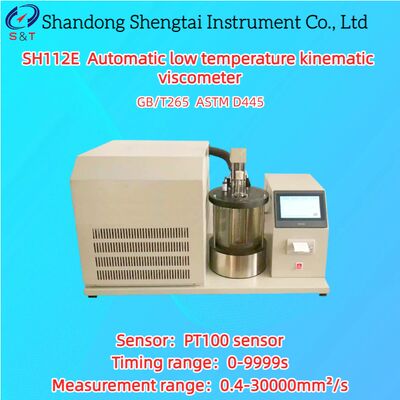

SH112E Automatic low temperature kinematic viscometer

SH112E low temperature petroleum kinematic viscometer conforms to the national standard GB/T265 "Petroleum product kinematic viscosity measurement method and dynamic viscosity calculation method" standard measurement requirements.Two viscosity tubes can be placed simultaneously for experimentation.

Kinematic viscosity: At a constant temperature, the gravity flow under a certain volume model is determined, and the constant of the calibrated glass capillary viscometer flows over time. The product's kinematic temperature is used to measure the viscosity of the liquid

The main features are as follows

● The constant temperature bath is double-layer dewar bottle with low temperature. The temperature distribution in the bath is even and the temperature control effect is good.

● The instrument adopts precision digital temperature controller to control the temperature in the bathtub, the executive components are solid-state relay SSR, with temperature control accuracy and accuracy, no contact, no noise, no spark, fast action, long life and other characteristics.

● Capillary card adopts three point vertical type, flexible and convenient operation, reliable clamping.

● Adopt color LCD large screen Chinese display, no marker button,

● Temperature measurement using precision platinum resistance PT100, -40 ℃~60 ℃ can be set arbitrarily,

● The constant of the capillary can be stored after power off.

● Manual sampling, manual cleaning, and automatic calculation of viscosity value can be performed.

● USB data output function, imported to computer in Excel format

★ Remote upgrade: With TCP network transmission function, software remote upgrade can be carried out later (optional)

★ Data management: can be connected to the LIMIS system (optional)

Main technical indicators

● Customer supplies are required: water or alcohol.

● Strictly according to national standards, the viscosity tube test before the need to clean the following reagents: solvent oil or petroleum

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
