Similar Viscometer For Grease Three-Speed Rotation Capillary Tube 0.025 0.05 0.1cm ASTM D1092

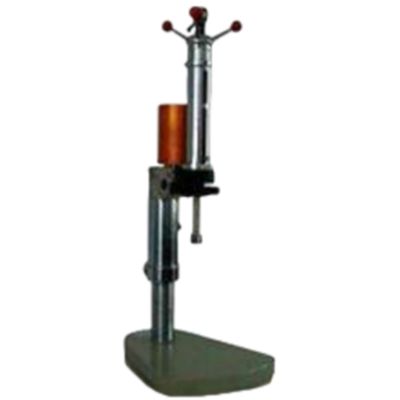

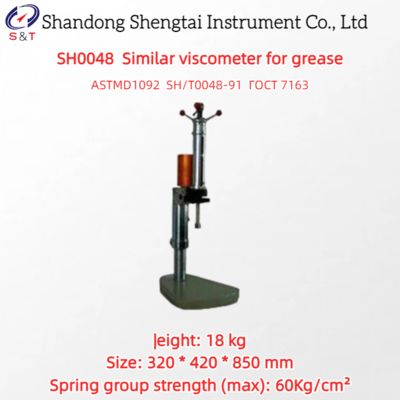

SH0048 Similar viscometer for grease

SH0048 Grease similar viscosimeter is used to determine the similar viscosity of grease according to SH/T0048-91 "similar viscosity of grease measurement method". Instrument equivalent Г О С Т 7163 standard for similar grease viscometry.

Similar viscosity refers to the viscosity measured at a certain temperature and shear rate. The similar viscosity of lubricating grease increases and decreases with the increase and decrease of shear rate.

The low-temperature viscosity of lubricating grease is expressed as low-temperature similar viscosity.

ASTM D1092 Measuring Apparent Viscosity of Lubricating Greases

Standard: ASTM D1092 SH/T0048-91 ГОСТ 7163

Performance characteristics:

● Adopt spring pressure type capillary viscometer

● The height and direction of the instrument can be adjusted arbitrarily on the column

● Recording cylinder can have three speeds to choose from

Technical parameters:

● Standard capillary size: 0.025, 0.05, 0.1 cm

● Spring group strength (max): 60Kg/cm²

● Record paper size: 110 * 300mm

● Instrument size: 320 * 420 * 850 mm

● Instrument weight: 18kg

The speed and linear speed of recording paper are compared

Note: The appearance pictures, dimension, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
