Semi-Automatic Open Flash Point Tester RT ～ 400℃ COC Method Plasticize ASTM D92

  • Semi-Automatic Open Flash Point Tester RT ～ 400℃ COC Method Plasticize ASTM D92
  • Semi-Automatic Open Flash Point Tester RT ～ 400℃ COC Method Plasticize ASTM D92
Luogo di origine Cina
Marca Shandong Shengtai Instrument Co.,Ltd
Certificazione GB/T1671 ASTM D92 GB/T3536
Numero di modello SD3536
Quantità di ordine minimo 1
Imballaggi particolari Cassa in legno
Tempi di consegna 7-15 giorni di lavoro
Termini di pagamento T/T
Capacità di alimentazione 10000 set/anno

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Potenza di riscaldamento 0-600W Controllo temporaneo RT ~ 400 ℃
Dispositivo per graffiare Scansione automatica Dimensioni del pacchetto 380 * 290 * 260 mm
Peso 10 kg Alimentazione elettrica AC220±10%V 50 Hz
Evidenziare

semi-automatic flash point tester

,

open flash point tester ASTM D92

,

COC method flash point tester
Lasciate un messaggio
Descrizione di prodotto

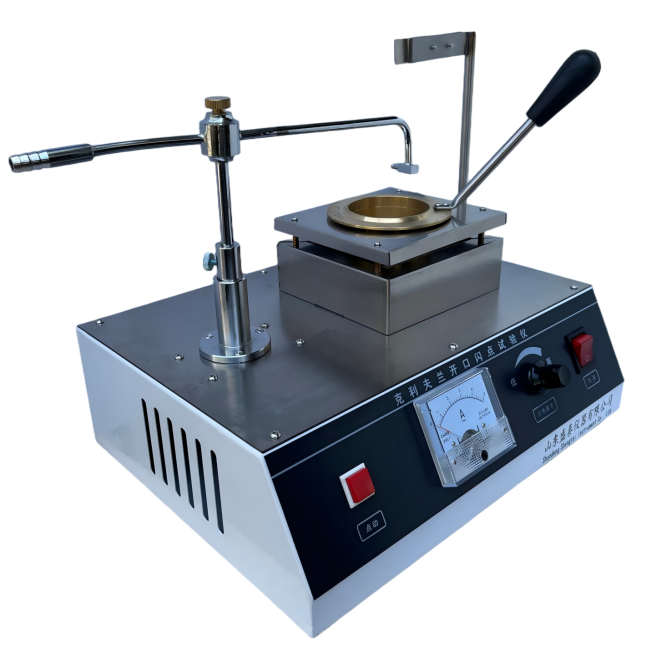

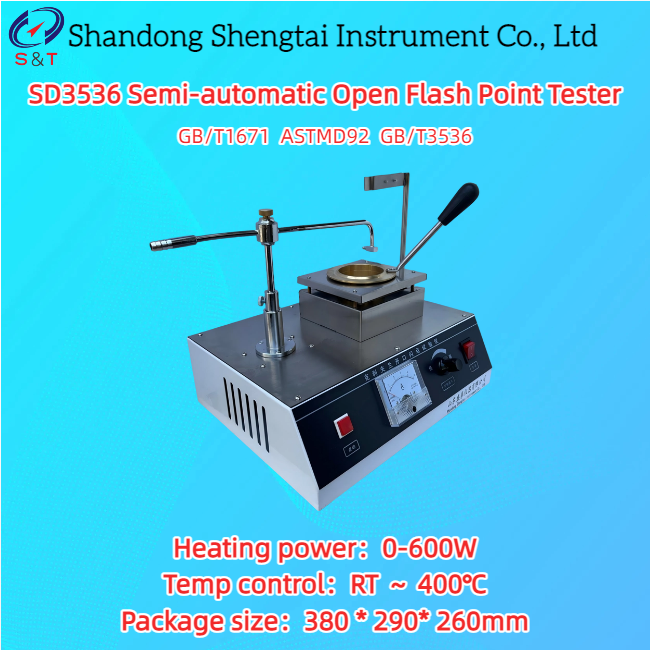

SD3536 Semi-automatic Open Flash Point Tester

SD3536 semi-automatic open flash point meter is designed and manufactured in accordance with the requirements specified in the People's Republic of China standard GB/T3536-2008 "Petroleum Products - Determination of Flash Point and Ignition Point - Cleveland Open Cup Method". It is suitable for measuring the flash point and ignition point of petroleum products except fuel oil and open flash point not less than 79℃, and also supports the determination of GB/T1671-2008 plasticizer flash point.

The open flash point is applicable to the determination of the flash point and ignition point of petroleum products except fuel oil and petroleum products with an open flash point not lower than 79℃

Standard: GB/T1671-2008 ASTM D92 GB/T3536-2008

Main technical parameters and indexes

Power supply AC220±10%V 50Hz
Heating device electric furnace heating, no flame, explosion-proof
Heating power 0-600W
Scratching device Automatic scanning
Temp control RT ～ 400℃
Grading 2℃, comply with GB/T514
Ignition device

(1) Ignition source: gas (or other civil combustible gas, the same below);

(2) Nozzle aperture: 0.6 ～ 0.8 mm.
Ambient temp -10 ～ 50ºC
Relative humidity ≤85%
Maximum power consumption 650W
Package size 380 * 290 * 260mm
Weight 10kg

Remind: Customers need to provide their own: air source and air source required pressure reducing valve

Note: The appearance pictures, dimensions, volume and weight of the device are for reference only. If there are any updates to the device, they may be slight changes without prior notice.

Semi-Automatic Open Flash Point Tester RT ～ 400℃ COC Method Plasticize ASTM D92 0

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packing list

Number Name Quantity Unit Note
1 Host 1 Unit
2 Oil cup 1 Piece
3 Igniter 1 Set
4

Thermometer

( RT ～300℃, Grading 2℃ )

 1 Piece
5 Thermometer rack 1 Set
6 Power cord 1 Root
7 Fuse (5A) 1 Piece
8 Connecting hoses 1 Piece
9 Certificate of Conformity for Instruction Manual 1 Copy
