Automatic Aniline Point Tester RT-200℃ Storage 200sets Mirco Printer ASTM D611

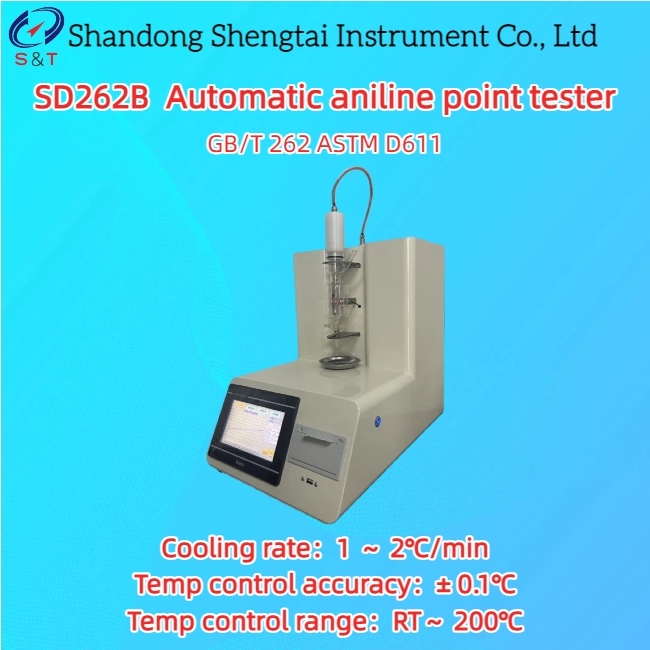

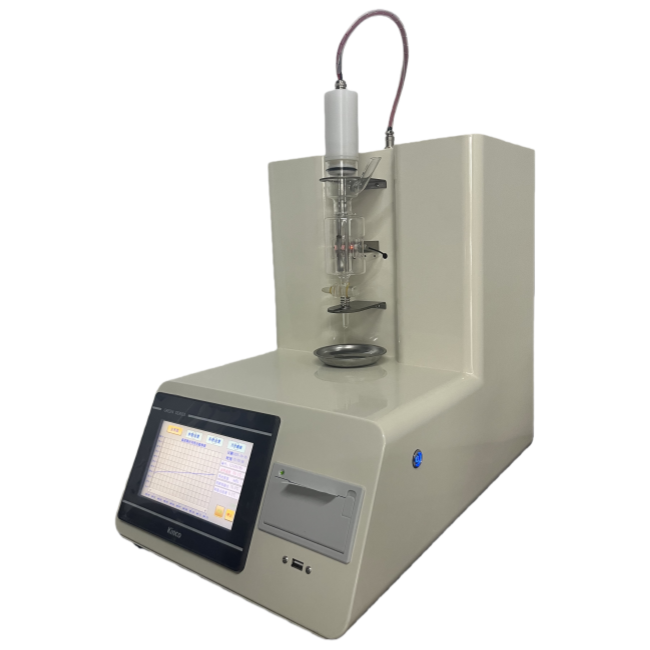

SD262B Automatic aniline point tester

SD262B Automatic aniline point tester is designed and manufactured according to the requirements of national standard GB/T262 "Aniline point determination method of petroleum products" and ASTM D611. It is suitable for the determination of aniline point of light colored petroleum products and dark colored petroleum products.

Aniline point is the lowest temperature at which petroleum products dissolve into a single liquid phase with aniline in equal volume.

Standard: GB/T 262 ASTM D611

Performance characteristics:

● 7 inch color LCD touch screen, fashionable and beautiful. Chinese human-machine dialogue interface, clear and intuitive.

● Using imported photoelectric sensors, the test results are accurate and have consistent repeatability.

● Equipped with over temperature alarm function. In the test, if the sample temperature exceeds 170 ℃, the buzzer will automatically alarm and stop the test.

● Easy to operate, one click start, and the test process is automatically completed.

● The host is controlled by a microprocessor program, with automatic heating and stirring during the testing process, automatic identification and storage of aniline points.

● Automatic printing, automatic shutdown at the end of the test.

● The experimental results can be exported through a USB flash drive and stored in a computer for multiple experimental comparisons

● It has the function of setting date and password.

● Working mode: automatic photoelectric detection, microcontroller control

● Storage method: The experimental results can store 199 sets of historical data for easy query;

● Result output: It can also be equipped with a USB flash drive output function, which can be output to the PC for long-term storage

● Output Format: The output format of the result USB drive is CSV or Excel.

● Standard printing: Standard micro printer for automatic measurement and thermal printing

● Display time temperature curve diagram

★ Remote upgrade: With TCP network transmission function, software remote upgrade can be carried out later (optional)

★ Data management: can be connected to the LIMS system (optional)

Technical parameters:

Note: The appearance photos, size,volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
