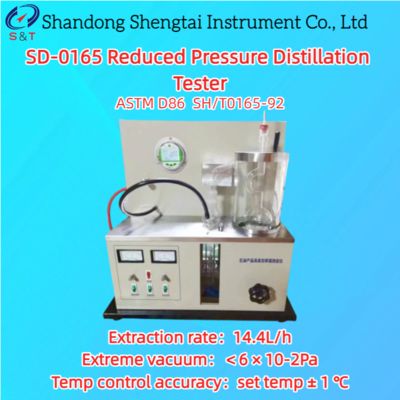

Reduced Pressure Distillation Tester PT100 Sensor Extraction 14.4L/h ASTM D86

  • Reduced Pressure Distillation Tester PT100 Sensor Extraction 14.4L/h ASTM D86
  • Reduced Pressure Distillation Tester PT100 Sensor Extraction 14.4L/h ASTM D86
Luogo di origine Cina
Marca Shandong Shengtai Instrument Co.,Ltd
Certificazione ASTM D86 SH/T0165
Numero di modello SD-0165
Quantità di ordine minimo 1
Imballaggi particolari Cassa in legno
Tempi di consegna 7-15 giorni di lavoro
Termini di pagamento T/t
Capacità di alimentazione 10000 set/anno

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Potenza del forno del riscaldamento del matraccio di distillazione 0-1000 W regolabile in continuo Punto di controllo della temperatura per il bagno d'aria della bombola di misura Temperatura ambiente ¥ 100 °C regolabile continuamente
Sensore Resistenza del platino Pt100 Precisione del controllo della temperatura temperatura impostata ± 1 °C
Alimentazione di lavoro AC220V 50Hz Potenza di riscaldamento Regolabile continuamente
Evidenziare

PT100 sensor lube oil tester

,

ASTM D86 distillation tester

,

14.4L/h reduced pressure extractor
Lasciate un messaggio
Descrizione di prodotto

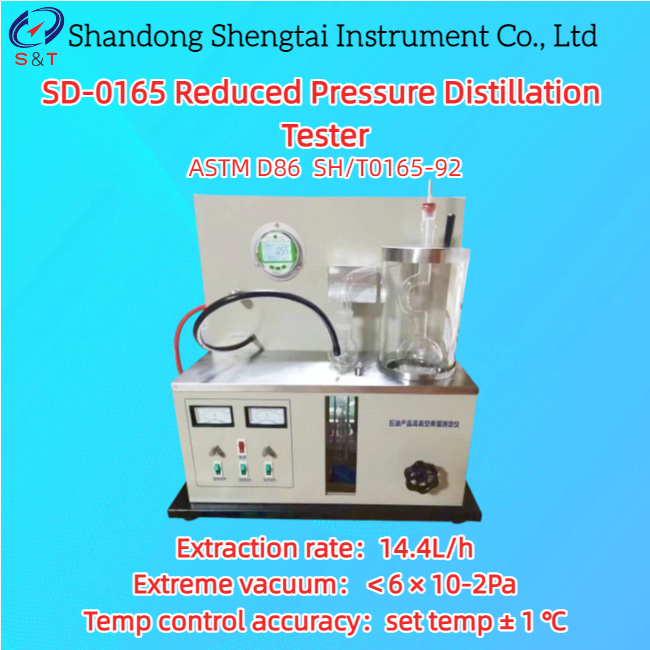

SD-0165 Reduced Pressure Distillation Tester

The SD-0165 Reduced Pressure Distillation Tester is designed and manufactured according to the requirements of the industry standard SH/T0165-92 "High Boiling Point Range Petroleum Product High Vacuum Distillation Determination Method" of the People's Republic of China. It is suitable for determining the distillation range of high boiling point range petroleum products such as wax oil and lubricating oil.

Reduced pressure distillation range: The temperature range in which petroleum products are evaporated under specified conditions, represented by their initial boiling point and final boiling point (converted to atmospheric pressure).

Standard: ASTM D86 SH/T0165-92

Technical parameters and characteristics

Heating power Distillation flask heater 1000W
Receiver cylinder heater 350W
Distillation flask heating furnace power 0-1000W continuously adjustable
Temp control point for the air bath of the measuring cylinder Room temp～100 ℃ continuously adjustable
Sensor Pt100 platinum resistor
Air bath temperature control method digital temp control meter for automatic temp control
Temp control accuracy set temp ± 1 ℃
Extraction rate 14.4L/h
Extreme vacuum ＜6 × 10-2Pa
Heating power continuously adjustable
Working power supply AC220V 50Hz



Working conditions

 Environmental temp 5～35℃
Relative humidity <85%
Dimensions 700 × 520 × 520mm (L × W × H)
Net weight of the instrument 59kg

● Structural design: A desktop structure consisting of a distillation testing section and a vacuum and pressure reducing section,

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

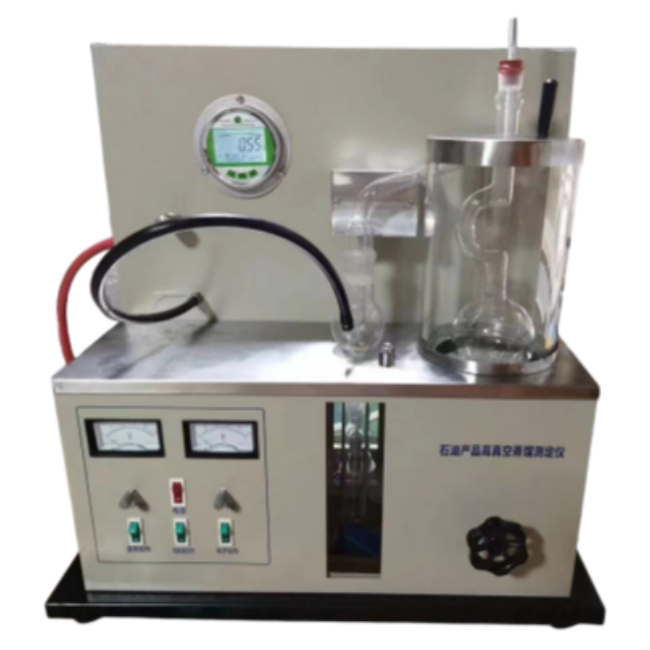

Reduced Pressure Distillation Tester PT100 Sensor Extraction 14.4L/h ASTM D86 0

Packing list

NO. Name Specifications Quantity Note
1 Host   1 unit
2 Thermometer (rod type) 0～360℃ 1 piece
3 Distillation flask   1 piece
4 Receiver measuring cylinder   1 piece
5 Vacuum pump   1 piece
6 Seal pad   1 piece
7 Fuse tube Φ5×20 10A 2 pieces
8 Oil-resistant rubber hose Inner diameter Φ8 0.5m
9 Instructions   1 copy
10 Certificate of conformity Warranty Card   1 copy



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
